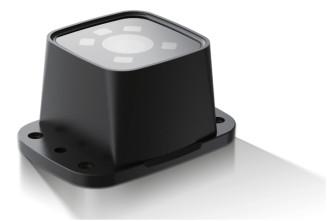

AI Camera-Civilized riding-CA-101
Short Description:
CA-101 is an AI camera product designed for civilized travel of shared electric bicycles, designed to be used in conjunction with a central control unit. This terminal is equipped to identify violations such as running red lights, driving in motor vehicle lanes, and riding against traffic. It uploads records of these violations to the central control unit and simultaneously captures images of the infractions, which are then stored in the backend for future evidence purposes. Additionally, this camera supports external fixed-direction cameras and helmet recognition cameras. The fixed-direction camera is used to capture ground parking markings, enabling precise parking functionality. The helmet recognition camera is employed to determine whether riders are wearing helmets, thus facilitating helmet compliance identification.
(1)Application scenarios:
① For the management of indiscriminate parking and placing of shared two-wheelers
② For the management of shared two-wheelers used without helmets
③ For the management about unauthorized use of shared two-wheelers
④ For the management of uncivilized cycling of shared two-wheelers
(2)Quality:
We have our own factory in China. We strictly monitor and test the quality of the products in the production process to ensure the best possible quality. Our commitment to excellence extends from the selection of raw materials to the final assembly of the products. We only use the best components and follow strict quality control procedures thereby ensuring the stability and durability of our products.
Our smart shared IOT device will provide a more intelligent / convenient / safer cycling experience for your users，meet your shared mobility business needs, and help you to achieve refined operations.
Acceptance: Retail,Wholesale,Regional Agency
Product quality：We have our own factory in China. In order to ensure the stability of product performance, our company strictly monitors and tests the product quality in production to ensure the good quality of products.We will be your most trusted shared IOT device provider!
About sharing scooter iot,any inquiries we are happy to reply, pls send your questions and orders.
Features:
- —Red light running identification： supports red light identification.
- —Motor vehicle lane driving identification： supports the identification of motor vehicle lane driving.
- —Retrograde recognition： supports recognition of retrograde.
- —Serial port (485) communication： through the serial port (485) and the sharing of the central control communication, upload illegal information, upload illegal pictures.
- —Infrared detection: supports infrared light, the dark environment can work normally.
- —Light sensing detection: supports photosensitive detection, automatically open the infrared light in the dark environment.
- —Video (photo) storage: memory card 8G (can be selected according to actual requirements), support storage for video and photos.
- —Fixed-point directional camera (optional): supports the identification of station parking lines to realize fixed-point parking.
- —Helmet recognition camera (optional)： identifies whether the helmet is worn.
Specifications:
|
Tractor parameter |
|
| Size | Length, width and height：(84±0.15)mm × (45±0.15)mm × (25.8±0.15)mm |
| Input voltage range | Voltage input：3.7V-5V |
| Power dissipation | Traffic light camera: <200 mA @ 4 VFixed-point directional camera: <100 mA @ 4 VHelmet recognition camera: <100 mA @ 4 V |
| Waterproof and dustproof | IP67 |
| Working temperature | -20 ℃ ～ +70 ℃ |
| Working humidity | 20% ～ 95% |
| Sheathing material | ABS+PC,V0 fire protection |
|
Bluetooth performance |
|
| Bluetooth version | BLE5.2 |
| Receiving sensitivity | -90dBm |
|
Traffic light camera |
|
| AI slug | Computing power: 0.2 Tops |
| Support for a 2M pixel camera | |
| Support for 1080P resolution | |
| The H.264 encoding is supported | |
| Camera lens | Field angle: FOV (D diagonal) 91.8 °± 5°, FOV (H) 84 °± 3°, and FOV (V) 54 °± 3° |
| Focus length: 2.88mm | |
| Lens size: H=15.56mm | |
| Image sensor | Pixels: 2 million pixels |
| Resolution: 1080P | |
|
Fixed-point directional camera |
|
| Resolution | 720P |
| Fill-in light | White fill light |
| White fill light | 3.7V-5V |
| Communication | USB joggle |
|
Helmet recognition camera |
|
| Resolution | 720P |
| Fill-in light | White fill light |
| White fill light | 3.7V-5V |
| Communication | USB joggle |
